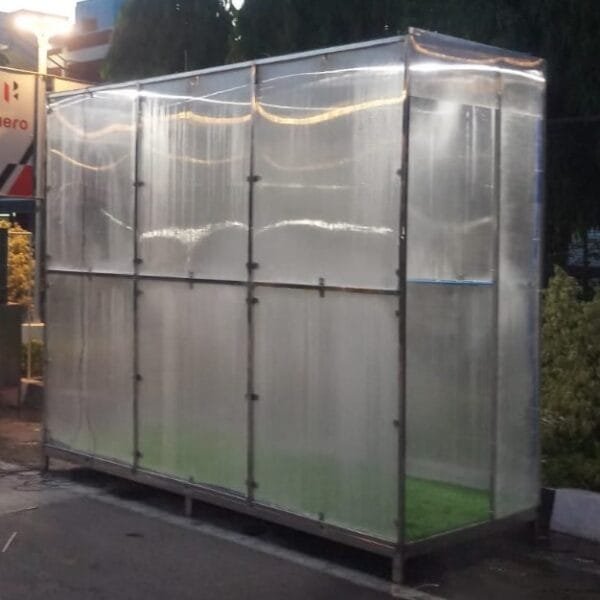

DTS03 PREMIUM

 Product  Information

Structural Details:

Tunnel Length 3 Meters (10 Feet)
Tunnel Height 2.4 Meters (8 Feet)
Tunnel Width 1.2 Meters (4 feet)
Easy Assembly YES
Channel Size 1 inch Stainless Steel Tube
Base Platform Yes
Collection Tank Yes
Coating Polished
Storage Tank 225 Liters
Side and Top Covering Acralyic 4 mm thickness
Tank and motor Location On the ground for easy refill
Rubber bottom Bush Yes

Pump Details:

Brand Name Tech Pumps
Model Name Greenly-001
Discharge Capacity 72 LPH / 1.2 LPM
  Pump Type SINGLE PHASE. SUCTION PUMP
STAINLESS STEEL SHAFT
SUCTION LIFT = UP TO 7 METERS
LIQUID TEMP = UP TO 50 C
MOTOR = 2 POLE INDUCTION MOTOR 50 HZ, 2900 RPM
SINGLE PHASE 230V +5% TO -15%
DOUBLE SEALED BALL BEARINGS
CLASS F/B
CAST IRON CASING AND BRACKET WITH BRASS IMPELLER
WITH DRY RUN AND FLOAT
Warranty 1 Year

Mist Nozzle:

Brand Name Synergy Spray Systems
Model Number TRUEMIST-0003
Orifice Diameter 0.3 mm
Output per nozzle .15 LPM
Total Number of Nozzles 8 Pieces

Other Details:

Tube Details HDPE tube
Stainers Double Stainers
MOQ for Branding 5 set

Chemicals (not included in the package):

Brand Name Greenly L10
Basic Price. Ex-works 89500
GST@ 18% 16110
Total Cost 105610
